Precision Stamping

Custom Metal Stamping & Progressive Dies

2025/04/11 86
Custom metal stamping for battery connectors, EMI shielding enclosures, lead frames, and sensor terminals for electronics, automotive, and battery module developers. High-volume, high-accuracy stamped components from prototype to full-scale production.

High precision micro stamping with progressive die capability. Expertise in precision die design, thin-gauge material forming, and conductive component stamping. Rapid prototyping to full-scale production. ISO 9001.
Details

Electronics

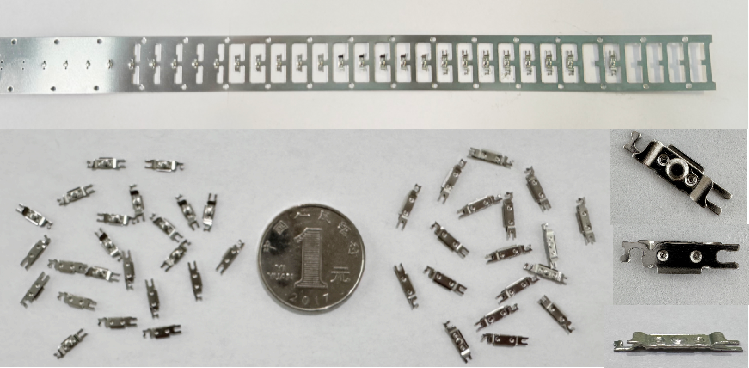

Description：Cell Phone Volume Key

Material：SS 304

Highlights:  Process improvement, the use of one-time stamping molding technology, instead of the original stamping and

                   then laser welding process, reducing the cost to 25% of the original.

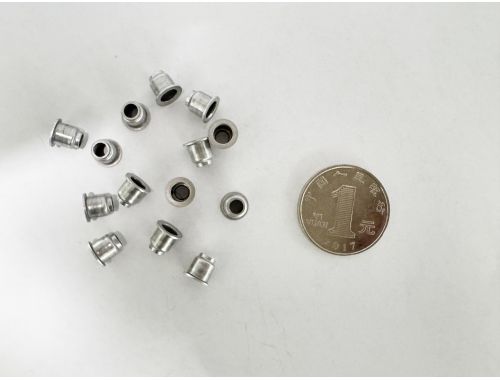

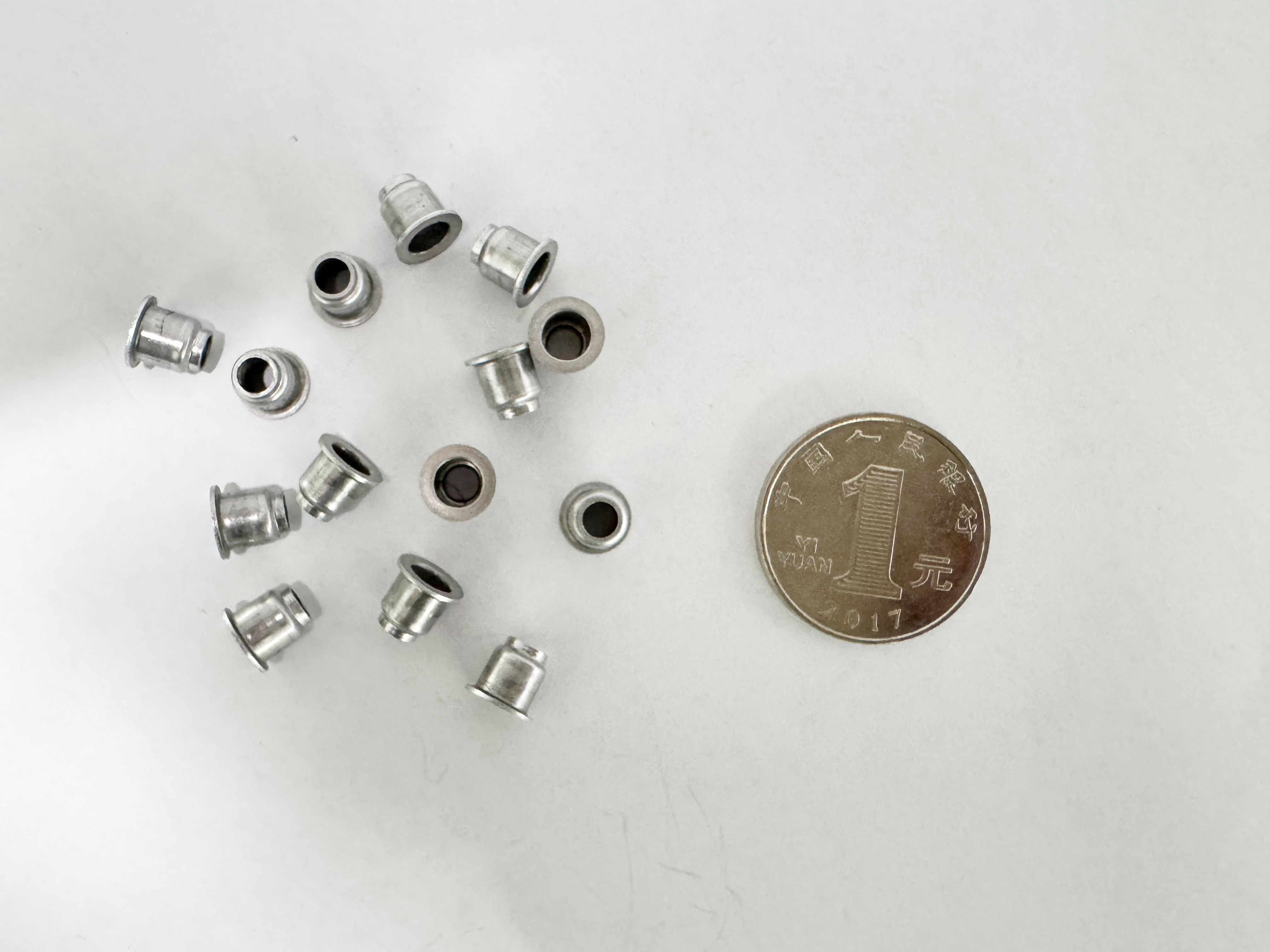

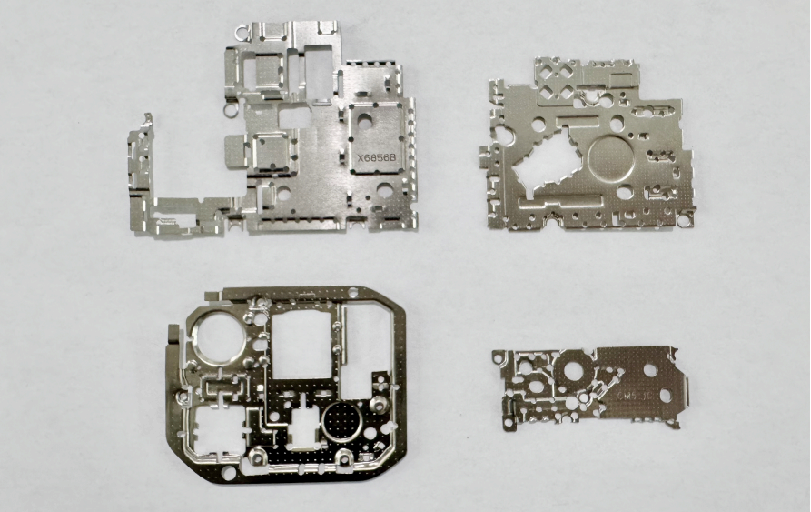

Description：Cell Phone Accessories

Material：SS304

Highlights:  High Precision Hollow Stamping



Telecommunications and communications

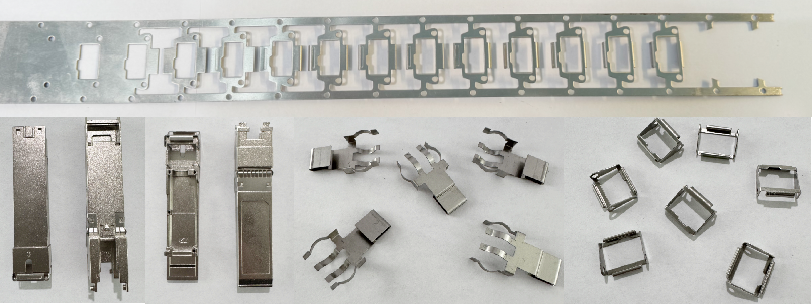

Description：Optical Module Components

Material：SS 304

Highlights:  Tolerance within ±0.05mm, Ra <1.6μ, Flatness error <0.1mm/100mm




Electrical Machinery

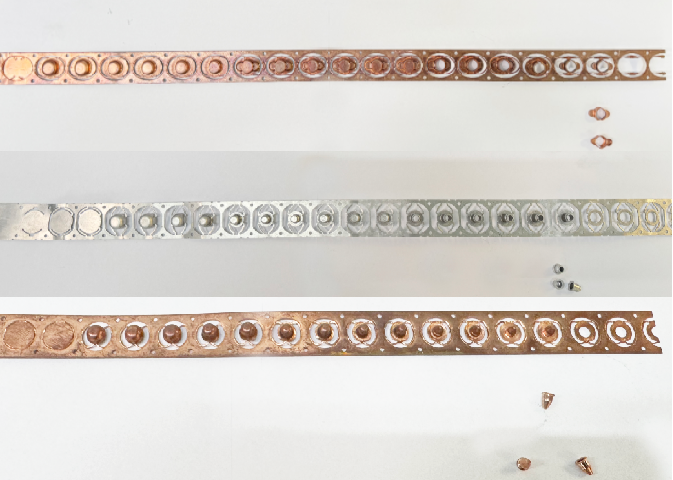

Description：Power tool parts

Material：Copper

Surface Treatment:  Silver-Plated

Highlights:  Complex Structure, Tolerance: 0.05mm
